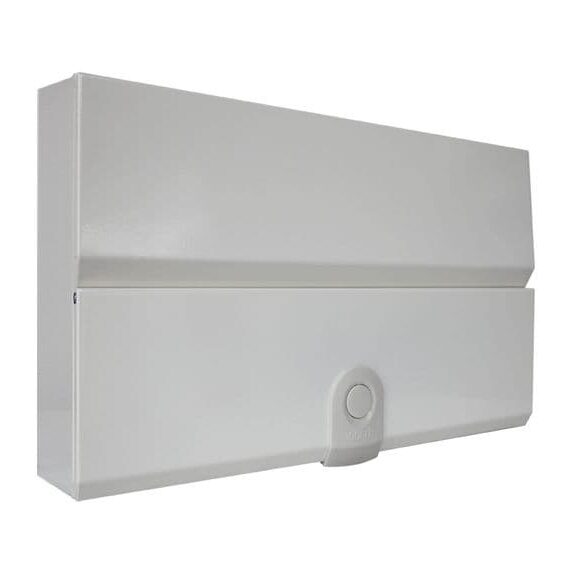

Hager 100A 10-14 Way Metal Consumer Unit (CP10HBM)

The Hager CP10HBM is a robust and flexible consumer unit designed for safer, smarter circuit protection. It features a metal enclosure, compliant with Amendment 3, and comes pre-fitted with high-capacity components to suit a range of residential installations.

This unit is equipped with two 100A 30mA Type A RCDs — offering better protection for modern electronic loads compared to standard Type AC devices. With up to 14 usable ways when the RCDs are not in use, this is an excellent choice for a full RCBO configuration.

✅ Key Features:

• Voltage: 230V

• Max Current Rating: 100A

• Total Ways: 16

  • 10 usable with RCDs fitted

  • Up to 14 usable ways when used for RCBOs only

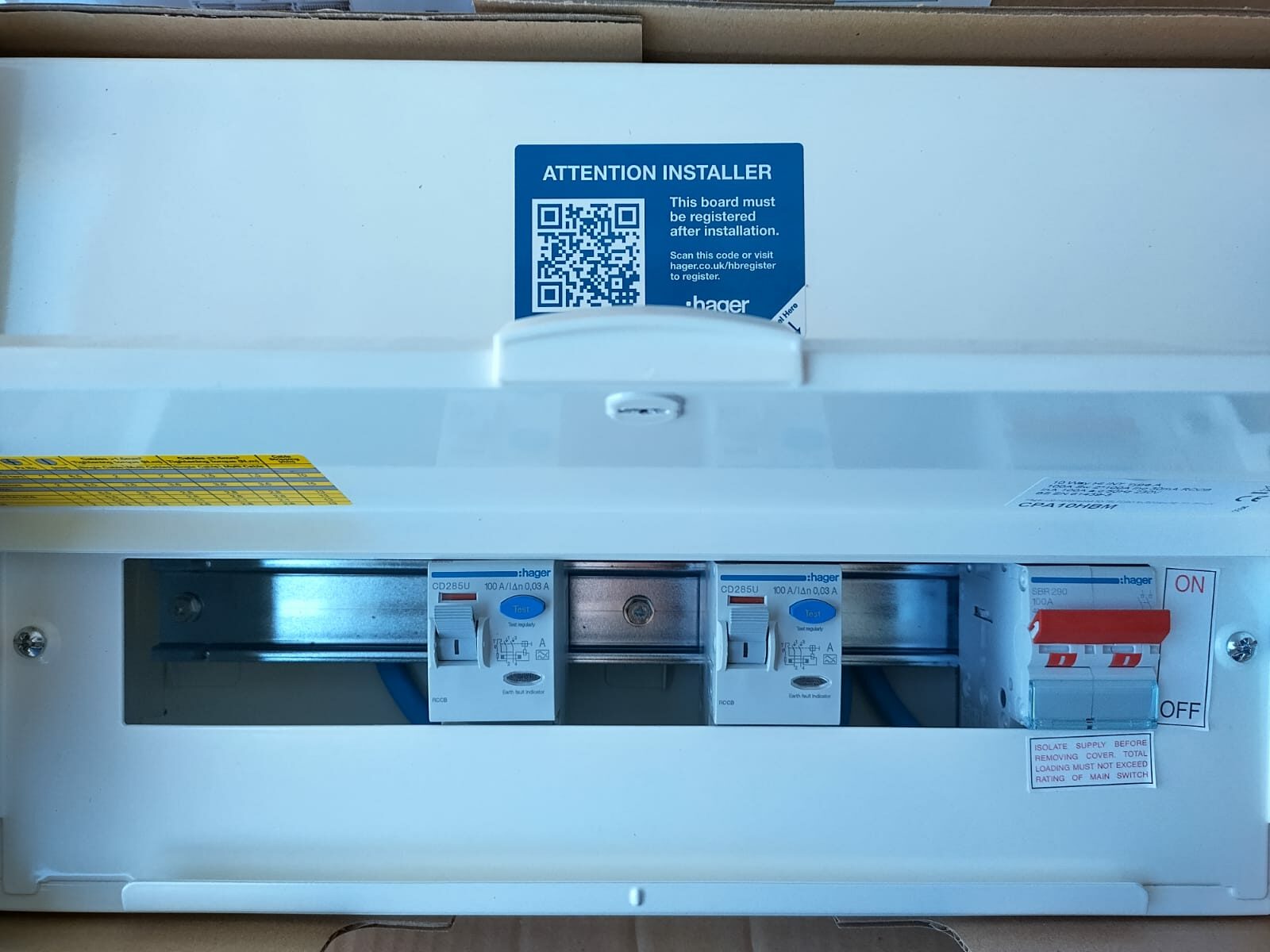

• Pre-installed Devices:

  • 2x 100A 30mA Type A RCDs

  • 1x 100A Double Pole Main Switch

• Metal Enclosure: Durable, lockable, Amendment 3 compliant

• Knockouts: Top, bottom, sides & rear for easy cable management

• Complies with BS EN 61439-3

• 17th Edition Wiring Regulations compliant

💡 Installer Highlights:

• Enhanced RCD protection with Type A devices

• Perfect donor board for full RCBO installs

• Clean internal layout and trusted Hager reliability

• Ideal for modern homes and upgrades where Type A RCDs are recommended

Additional Info:

• Brand: Hager

• Model: CP10HBM
